Description
References | |

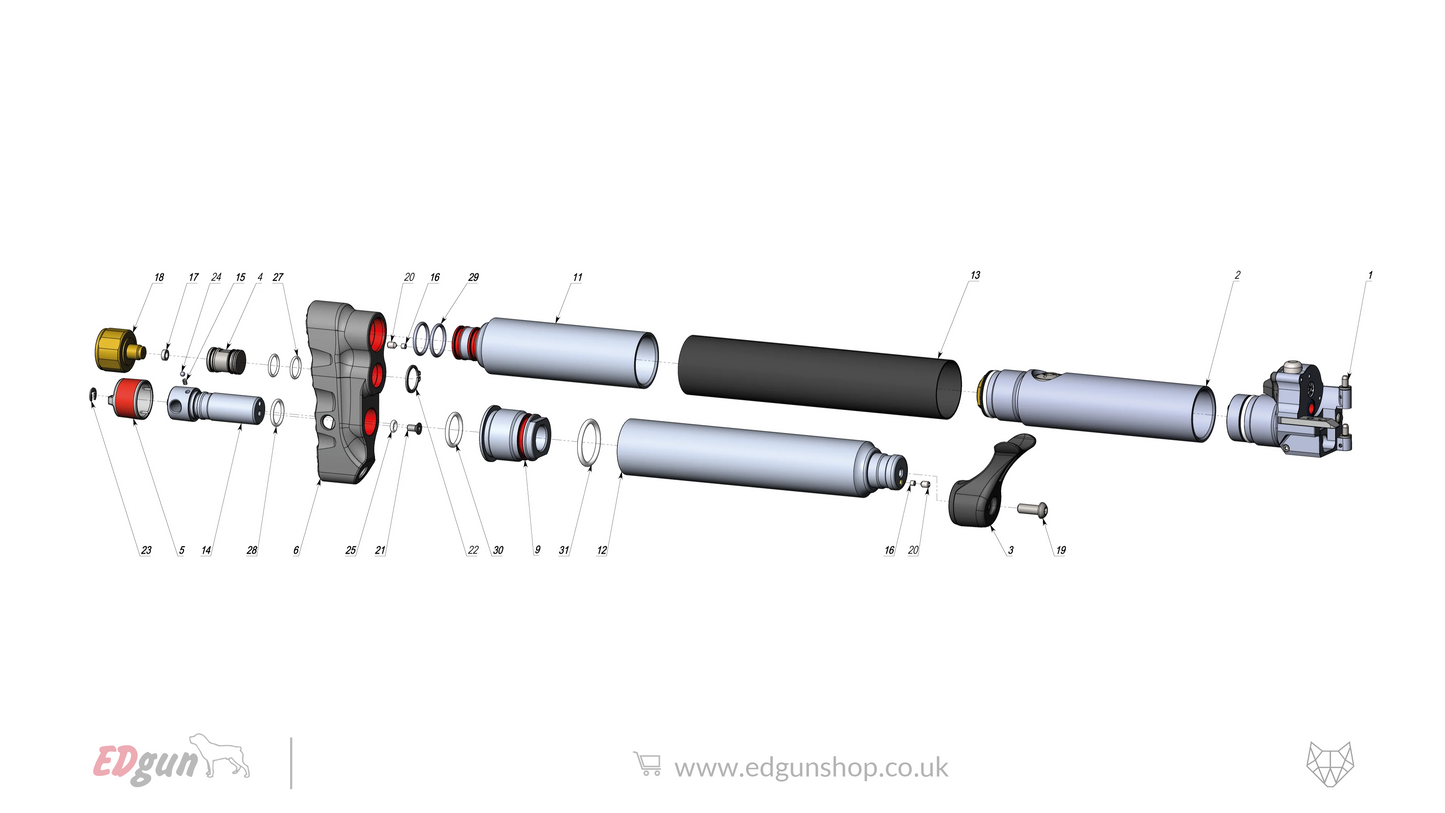

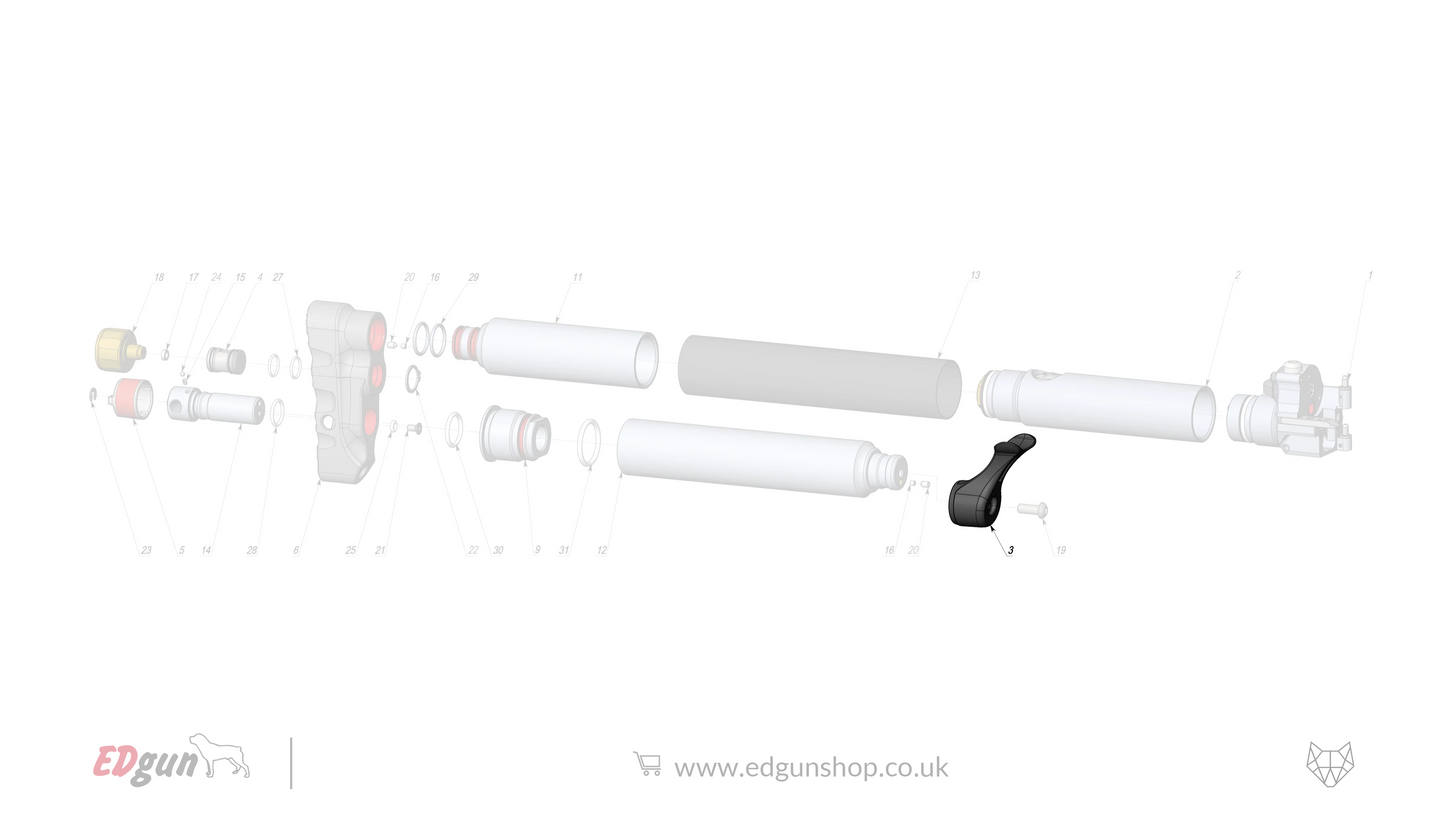

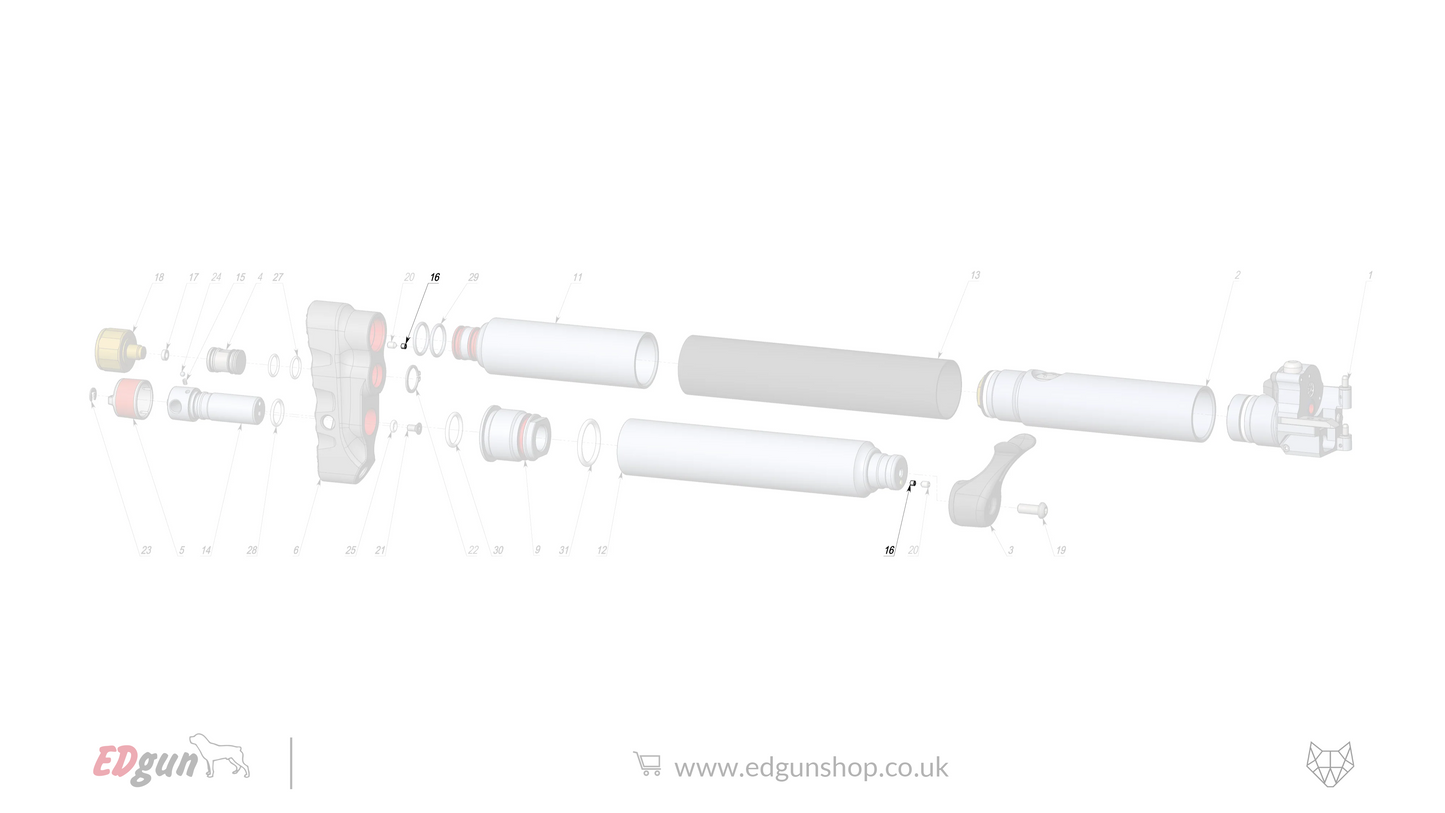

COMPLETE BUTT/RESERVOIR | 16- Seal - LSA242222 (x2) |

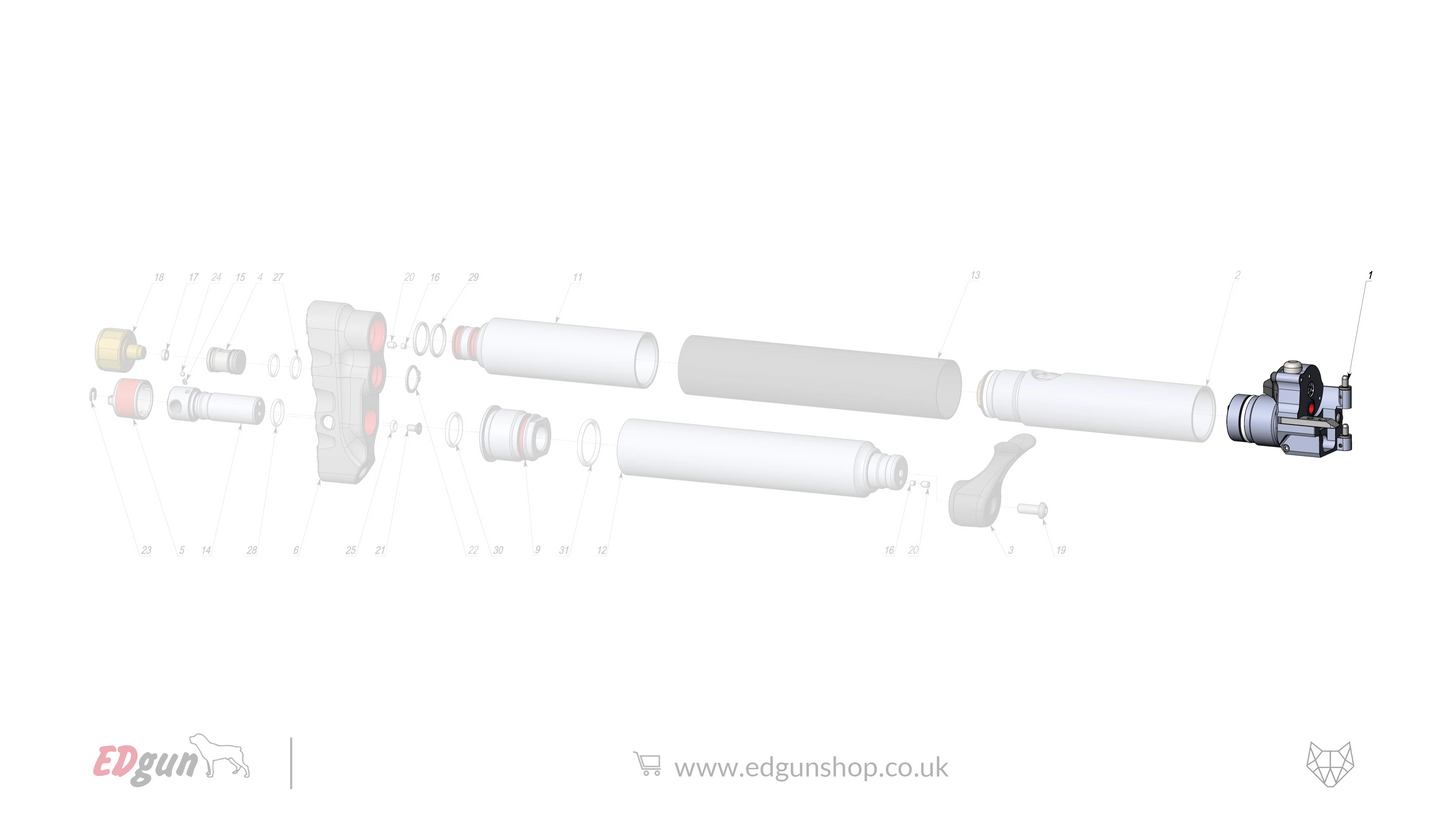

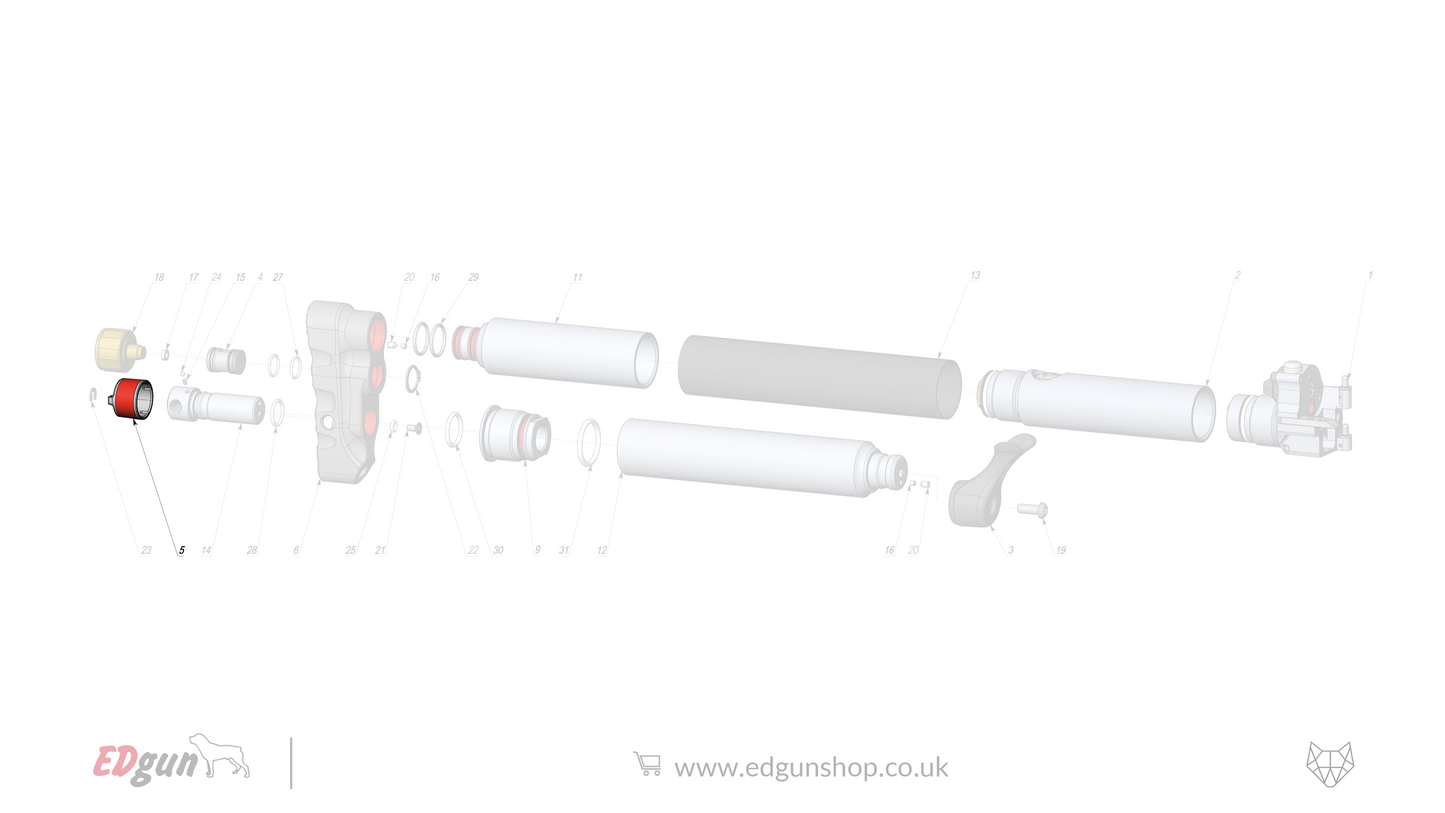

1- Forward plug - LSA242200 | 17- Gasket - LSA242507 (x1) |

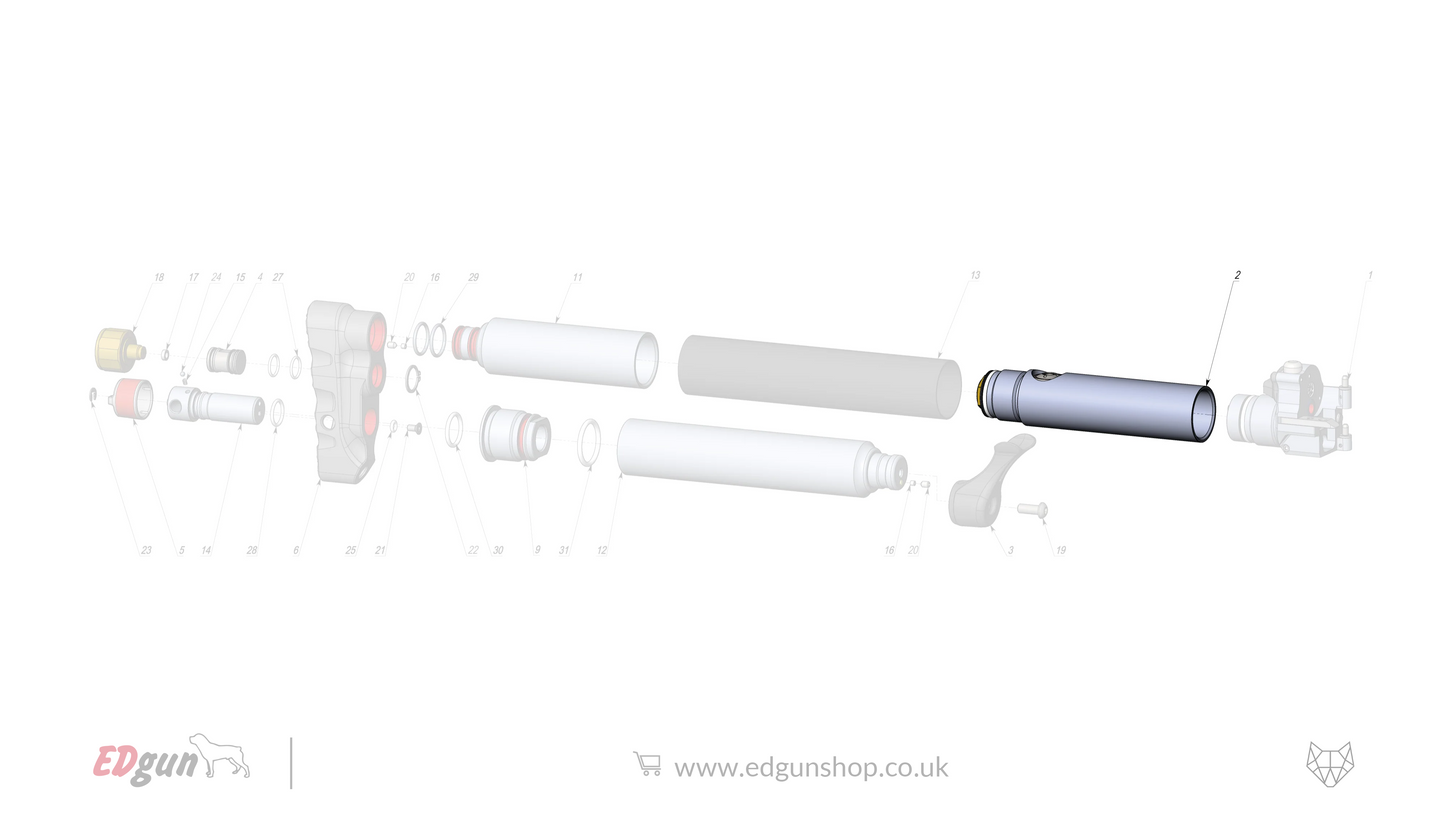

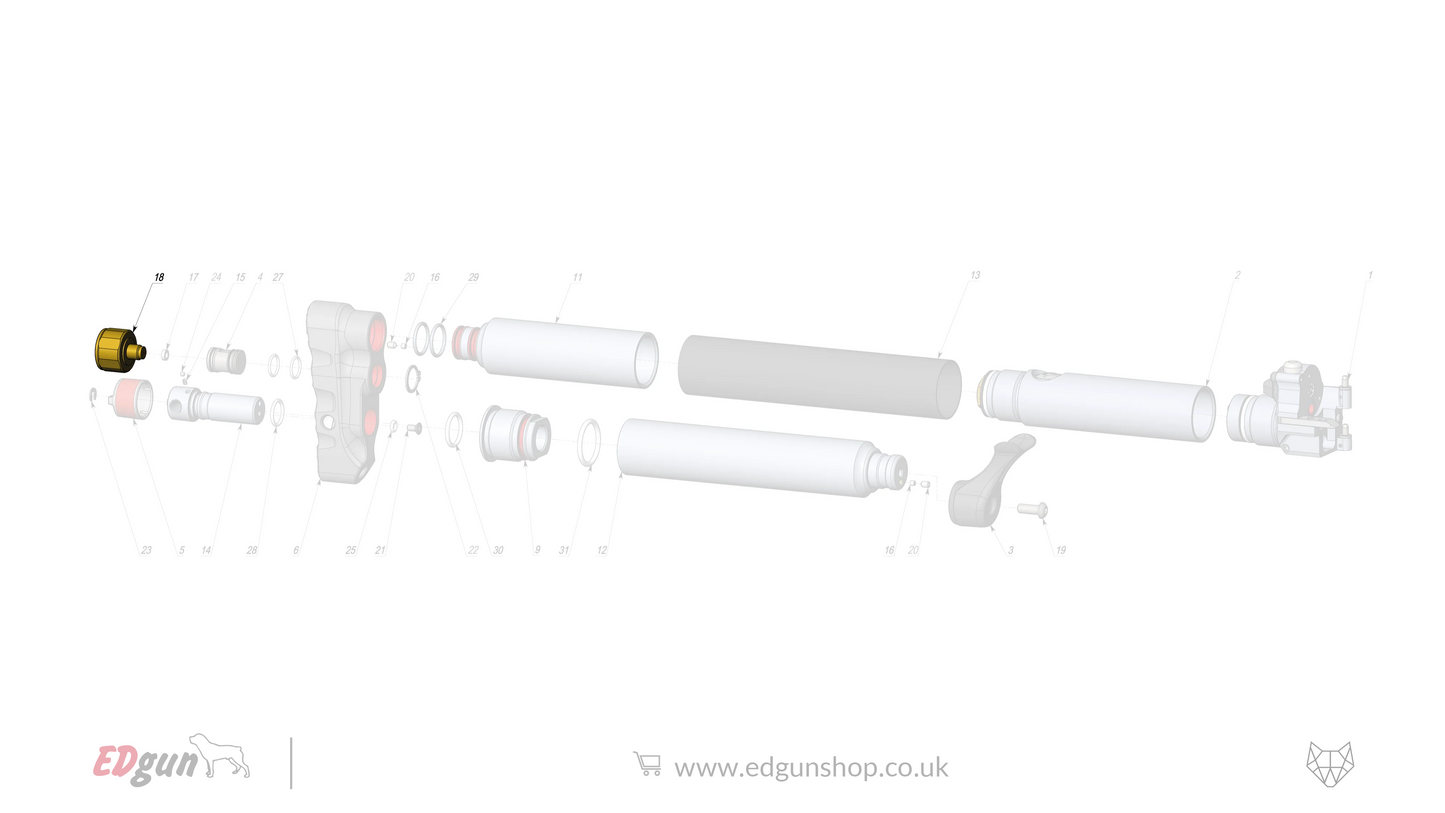

2- Externally Adjustable Regulator (E.A.R) | 18- EDgun Air Gauge |

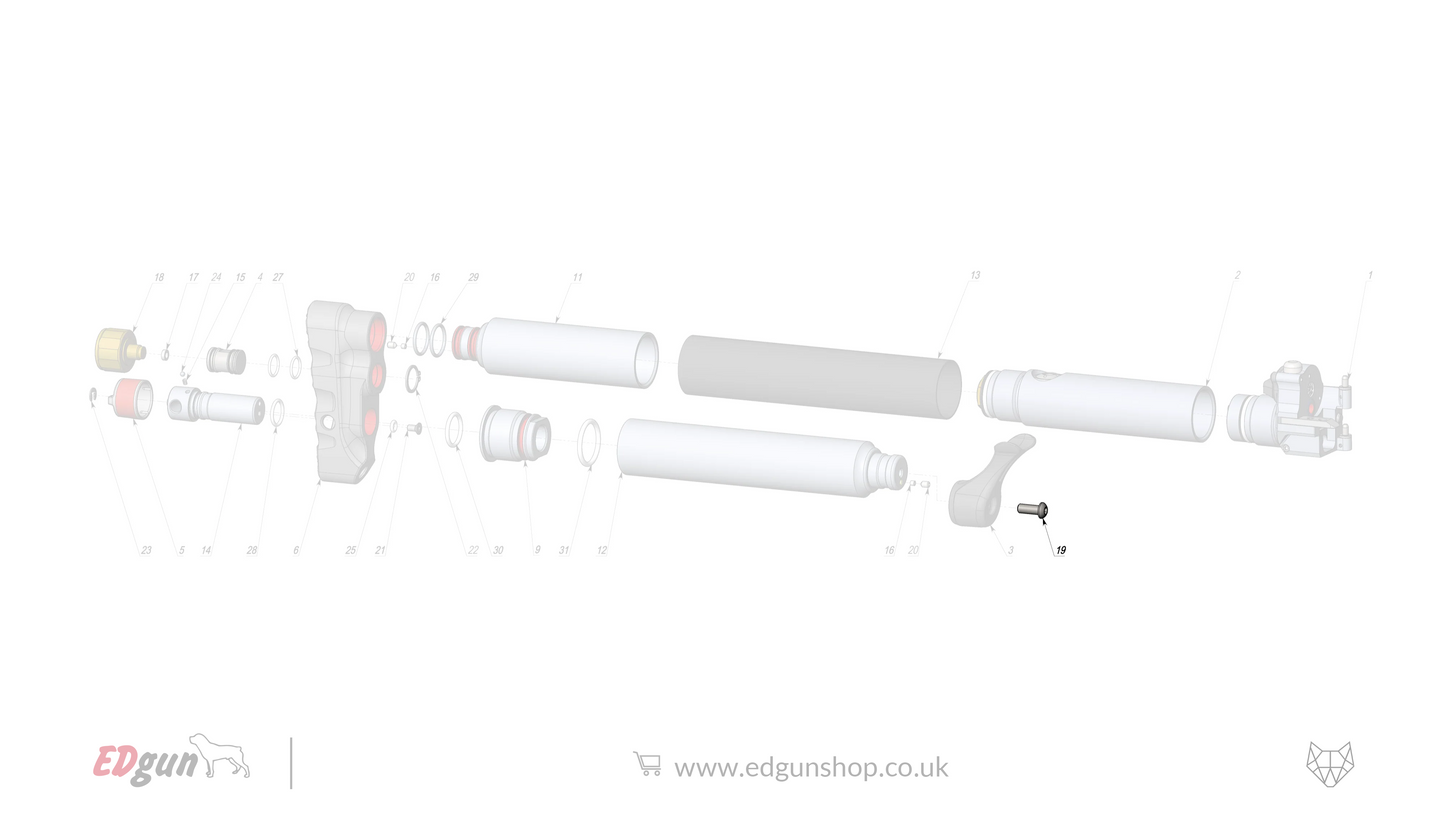

3- Bracket - LSA202014 (x1) | 19- Screw М6х16 10.9 ISO7380-1 (x2) |

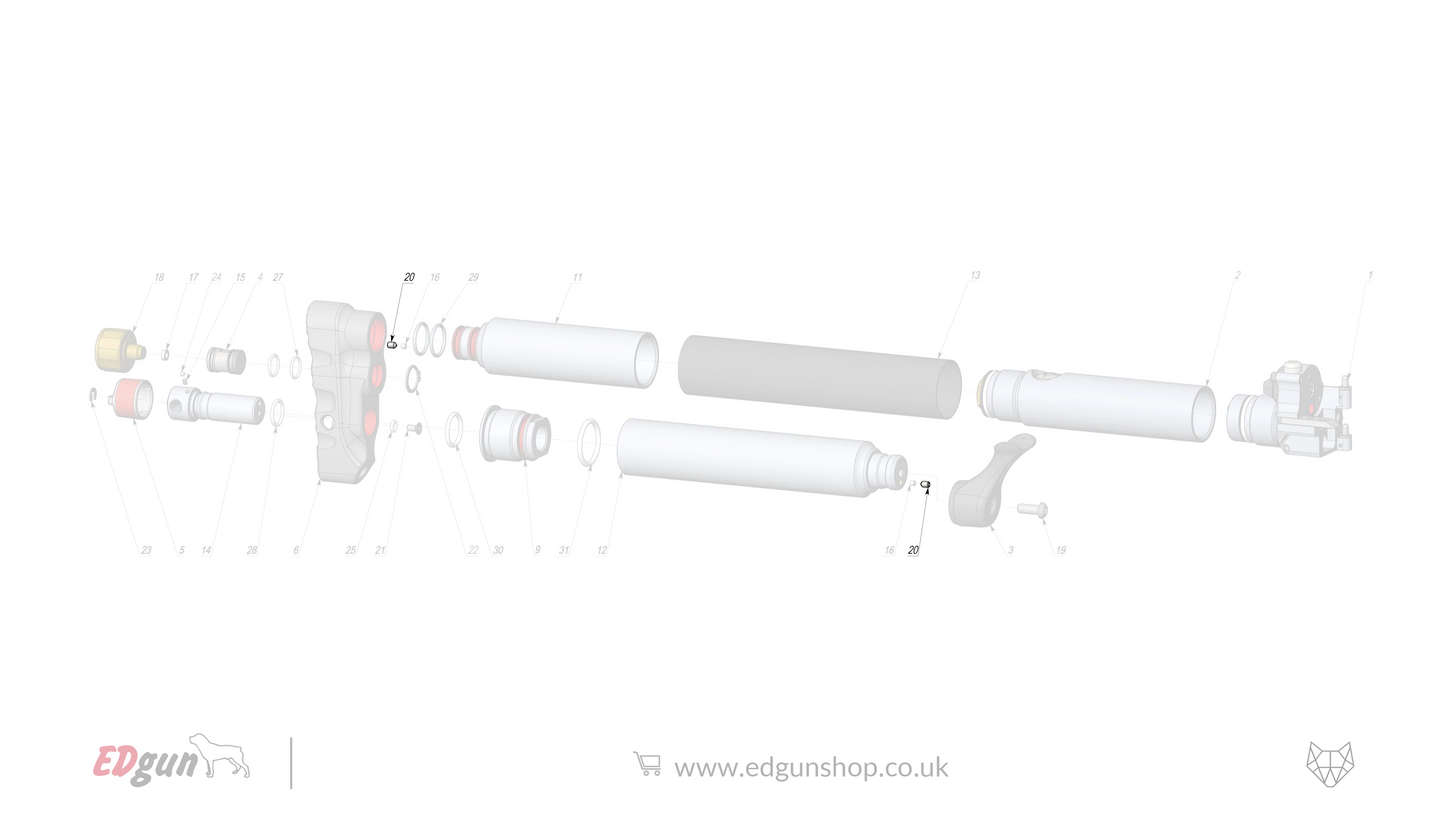

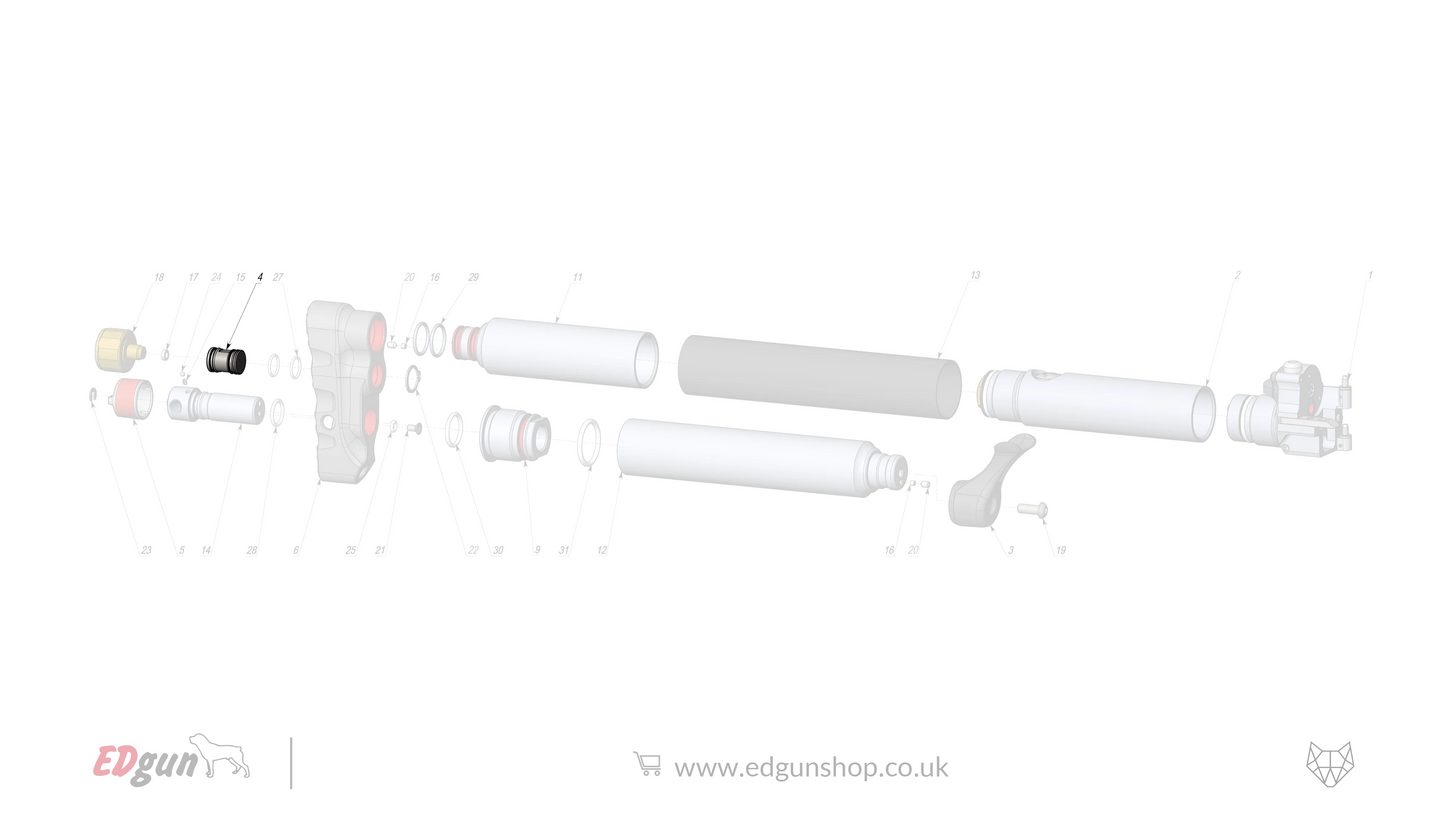

4- Plug - LSA212007 (x1) | 20- Screw М4х6 10.9 DIN914 (x2) |
5- Cover - LSA212013 (x1) | 21- Screw М4х8 А4 DIN7991 (x1) |

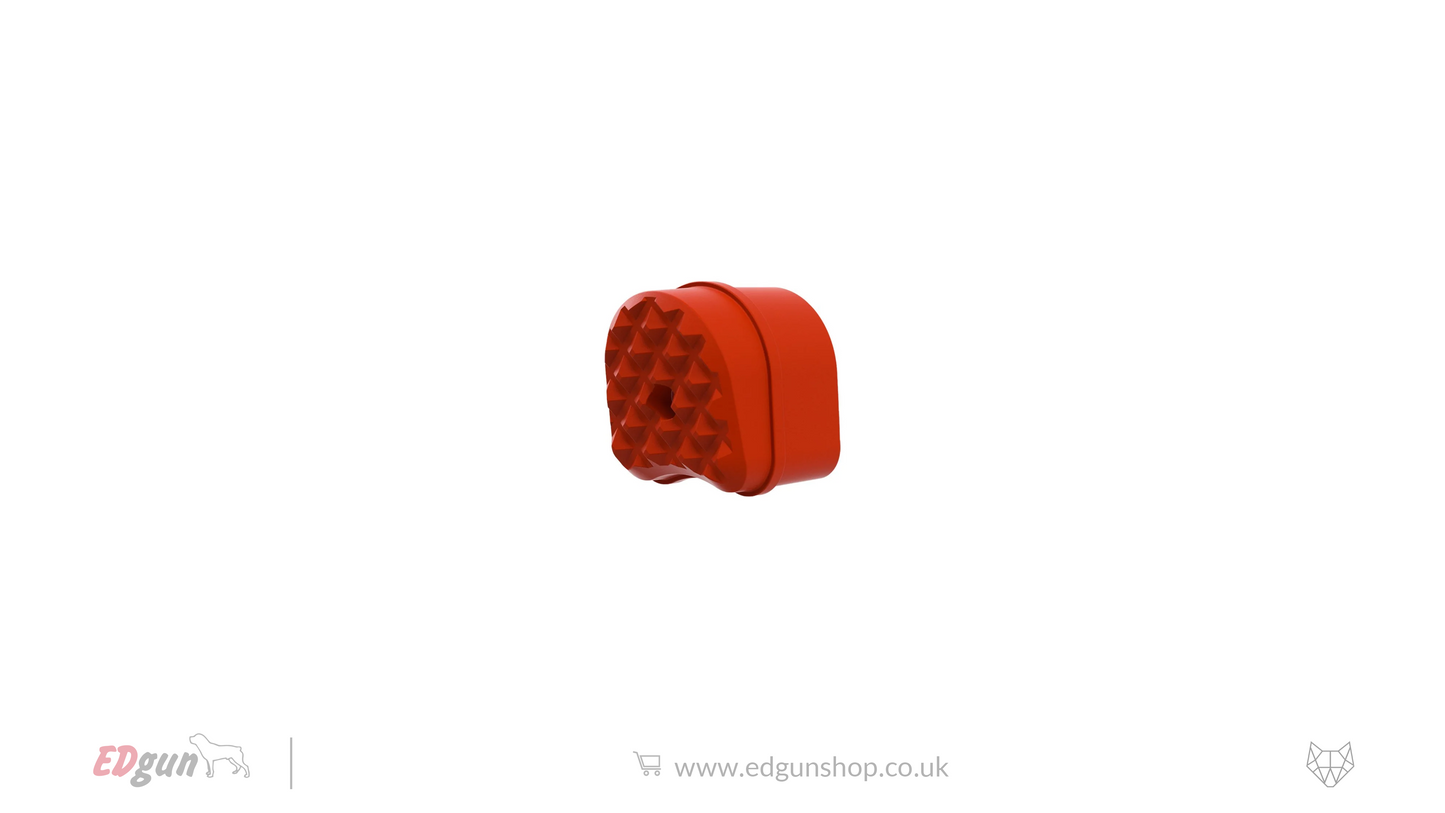

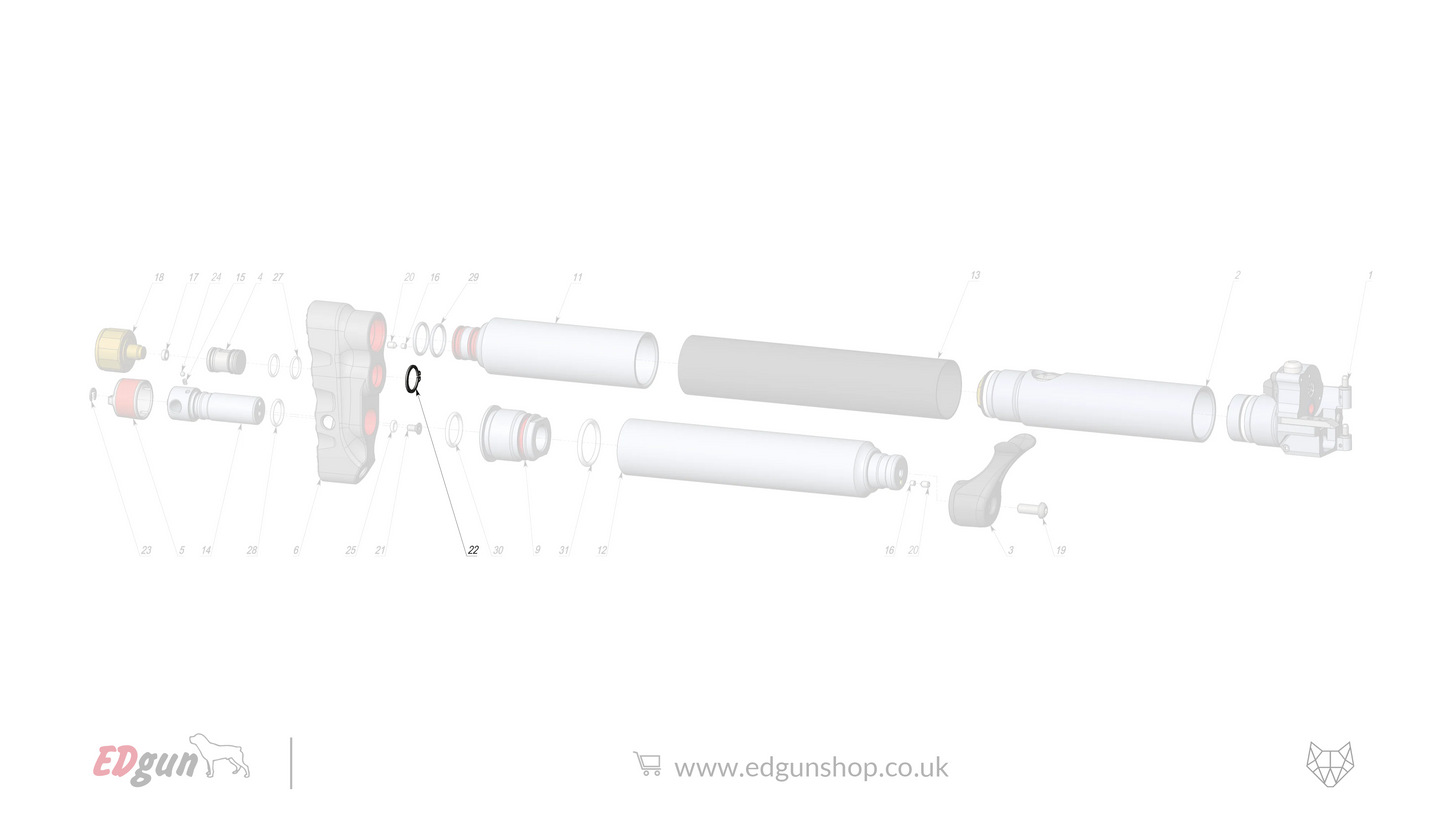

6- Buttpad - LSA216006 (x1) | 22- Ring 16 DIN471 (x1) |

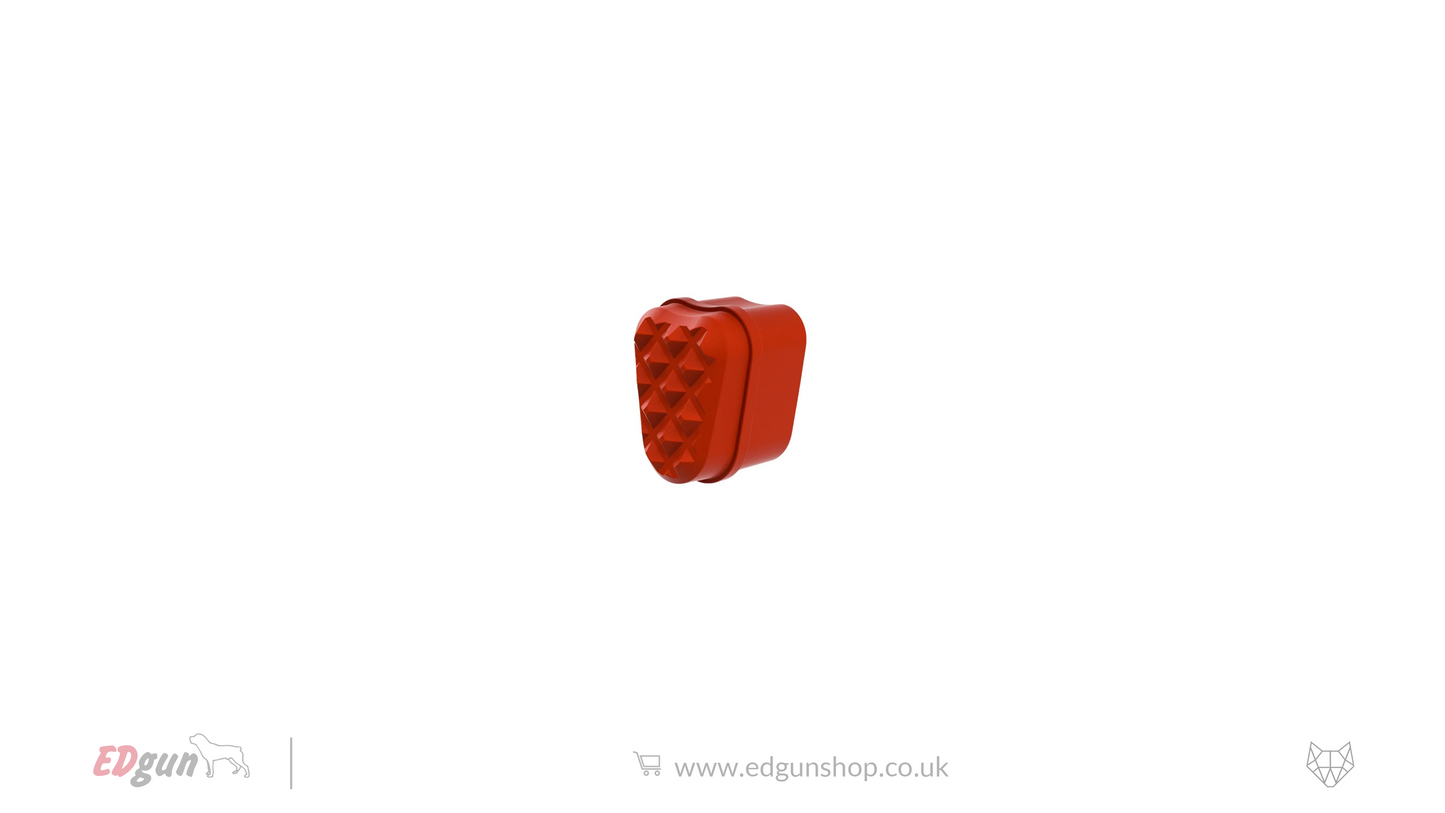

7- Insert - LSA218005 (x1) | 23- Washer 4 DIN6799 (x1) |
8- Insert - LSA218006 (x1) | 24- d3 Ball (x2) |

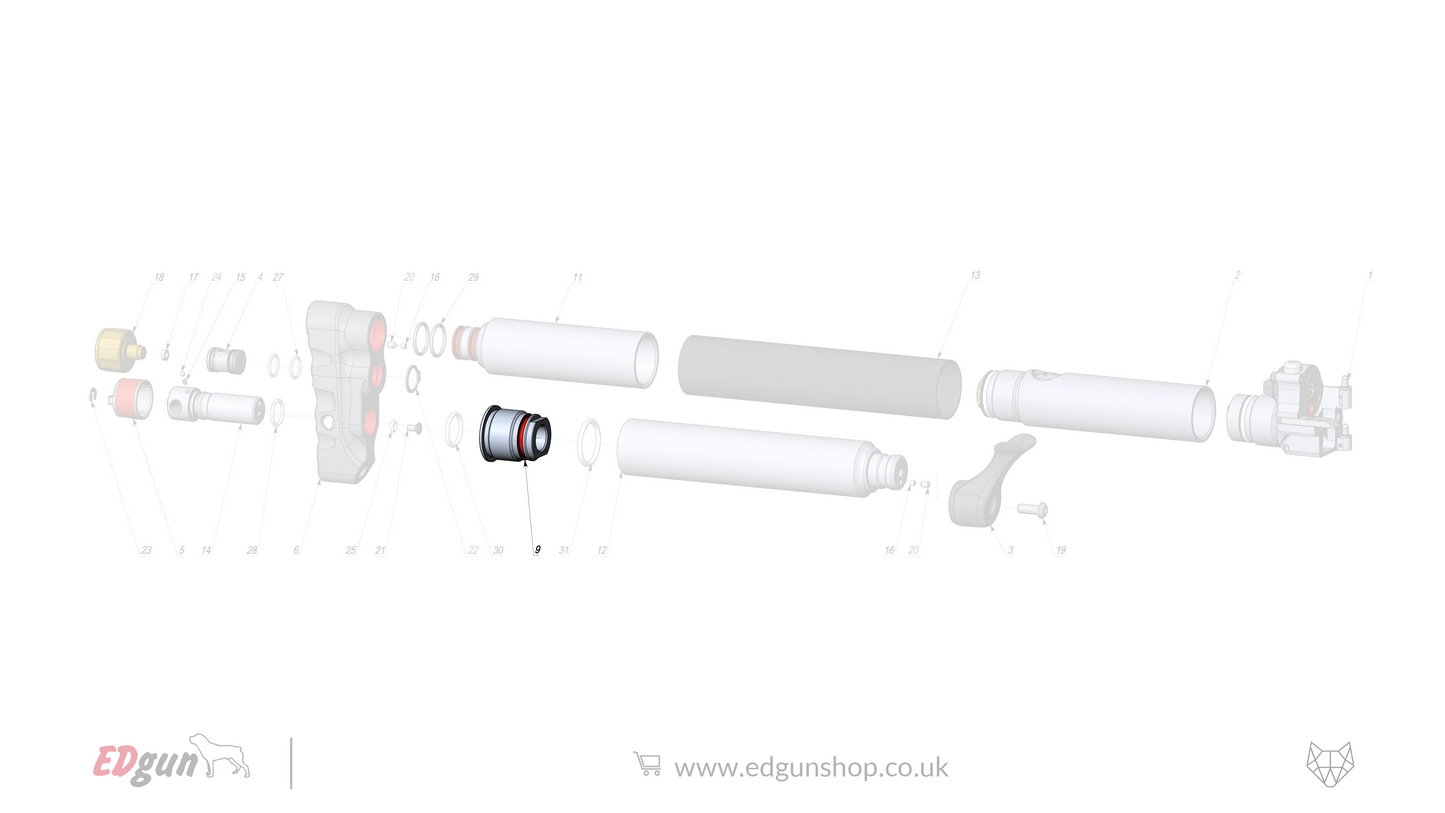

9- Plug - LSA222007 (x1) | 25- O-ring 70NBR 4х2 (x1) |

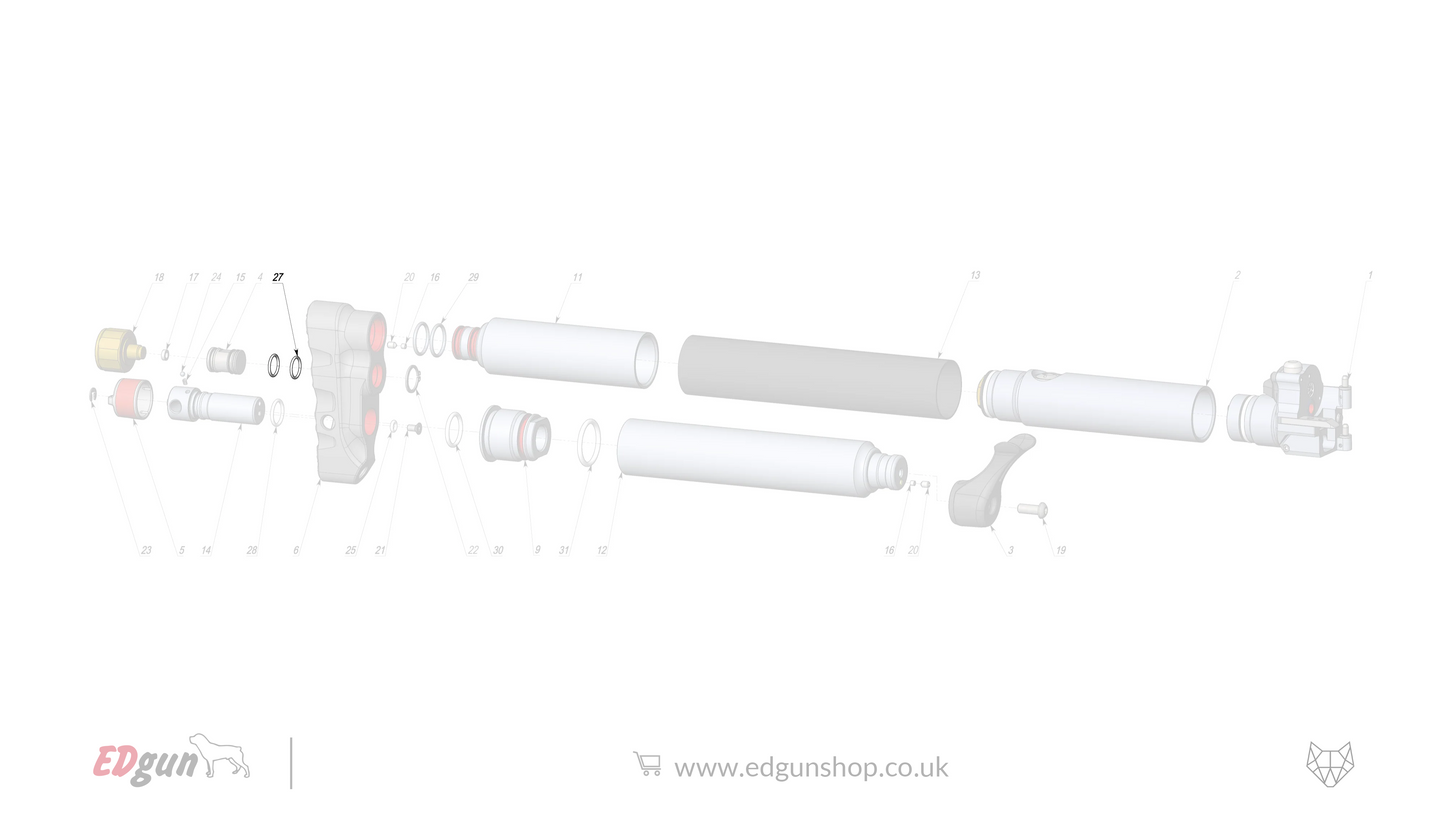

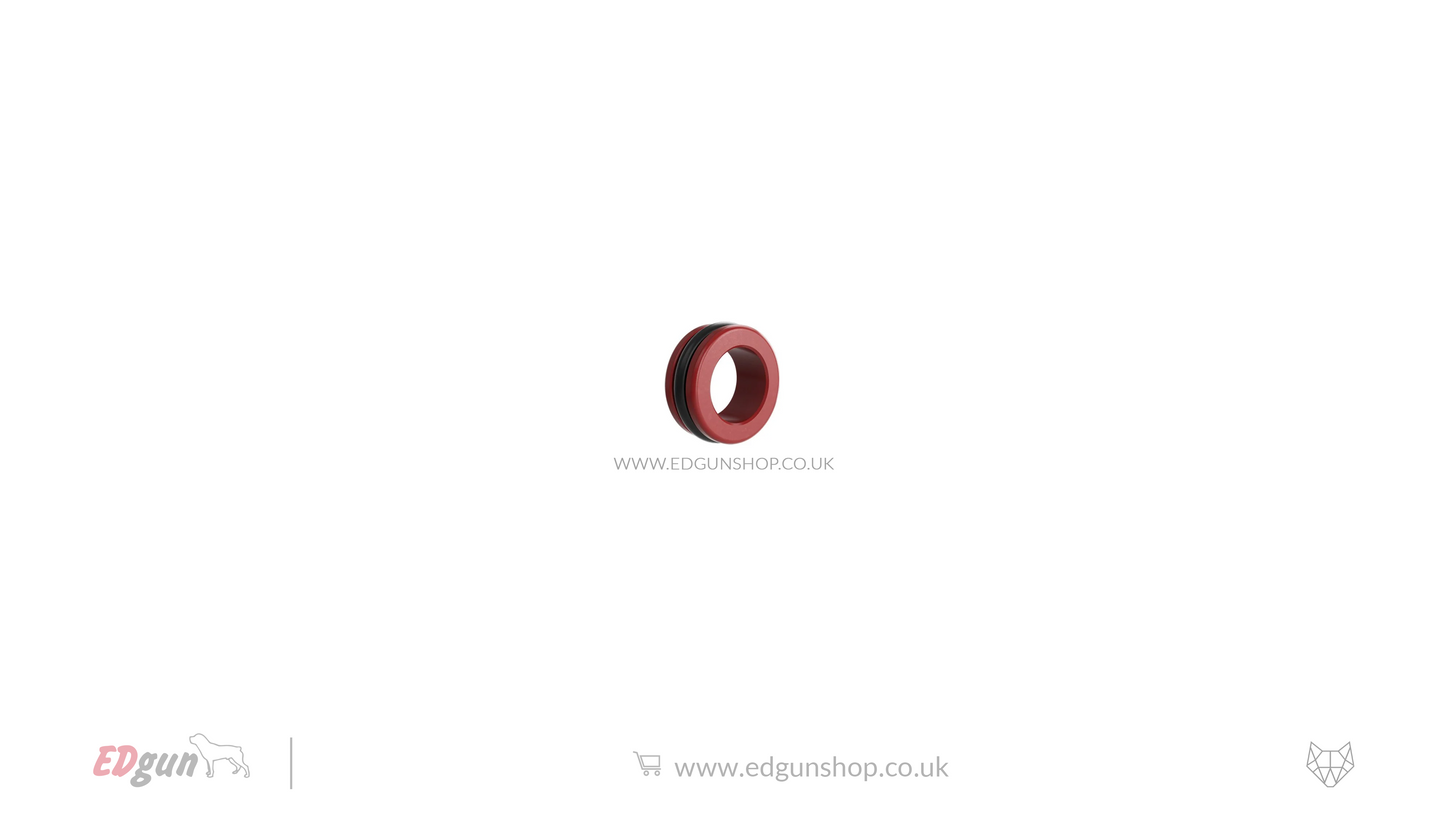

10- Sleeve - LSA222009 (x1) | 27- O-ring 70NBR 12х1,5 (x2) |

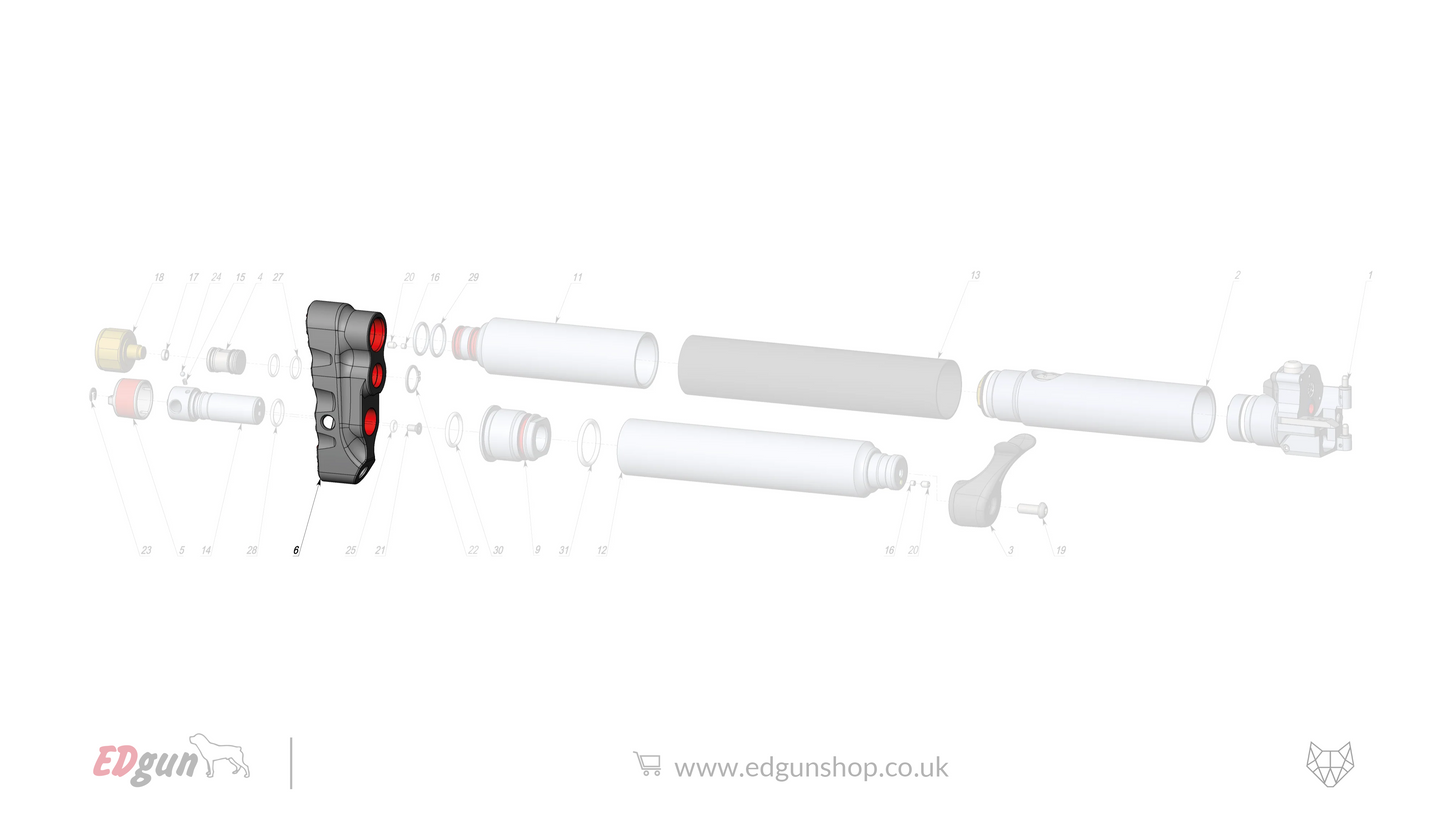

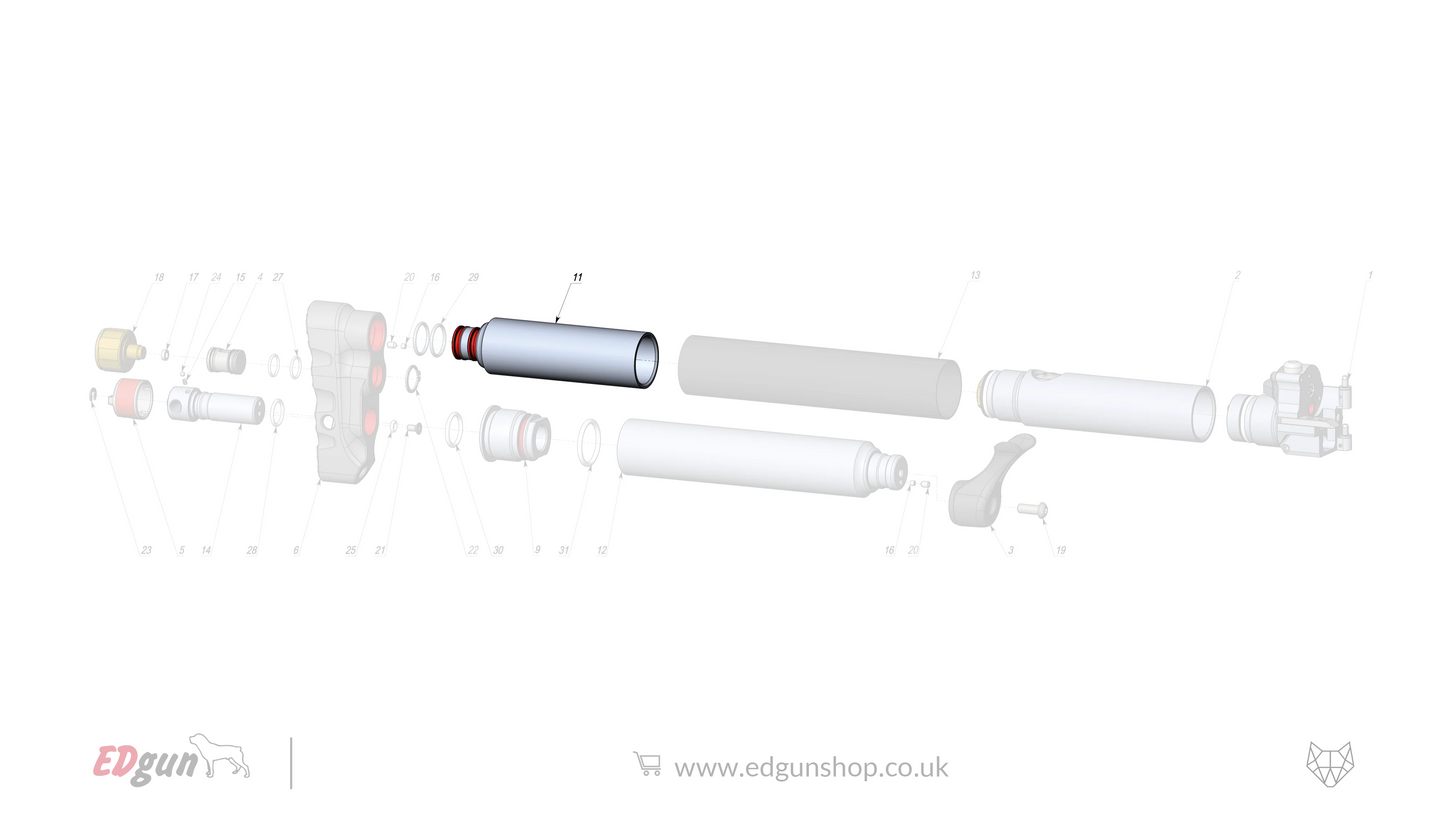

11- Butt/Reservoir - LSA242011-01 (x1) | 28- O-ring 70NBR 14х2 (x1) |

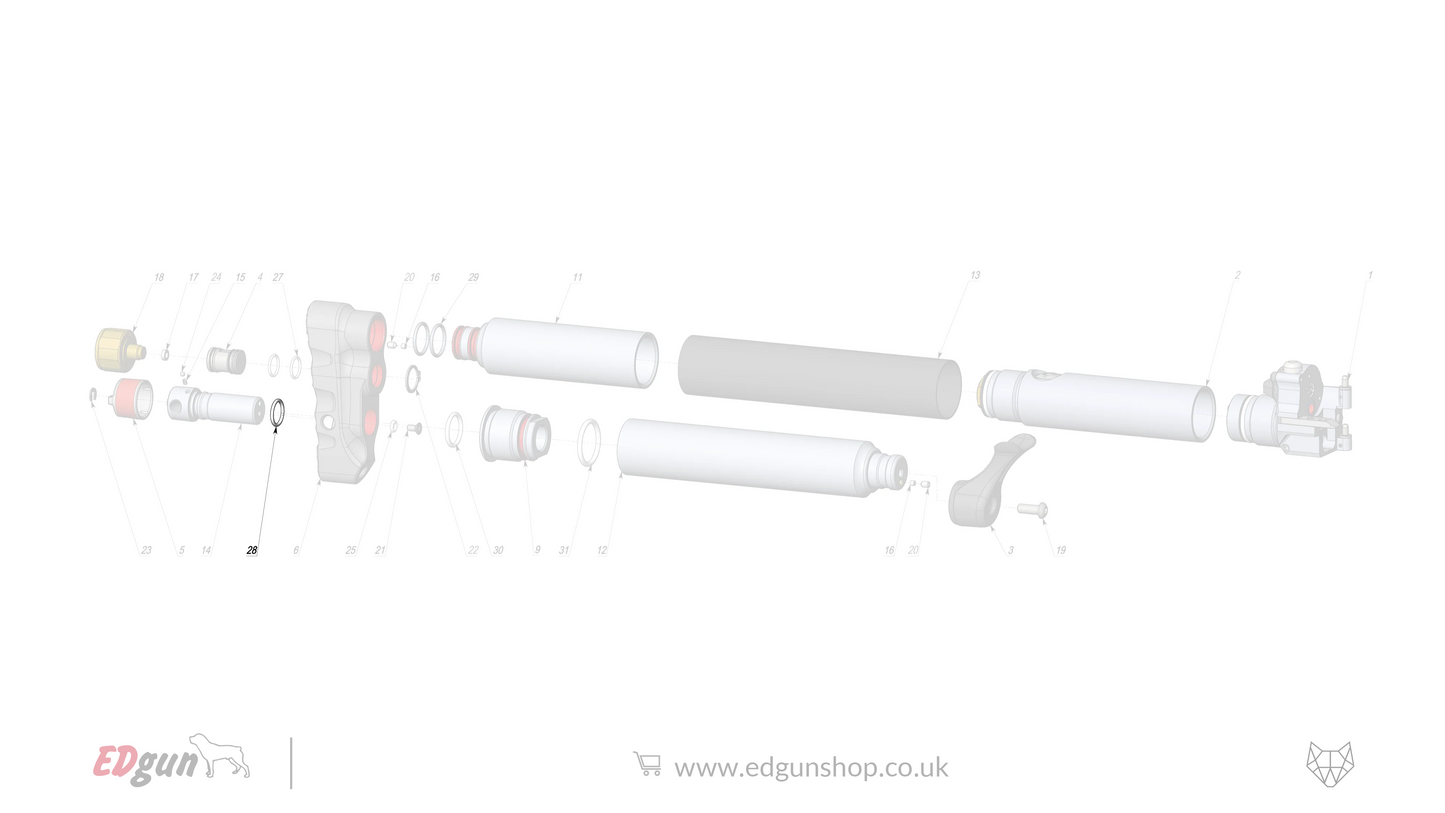

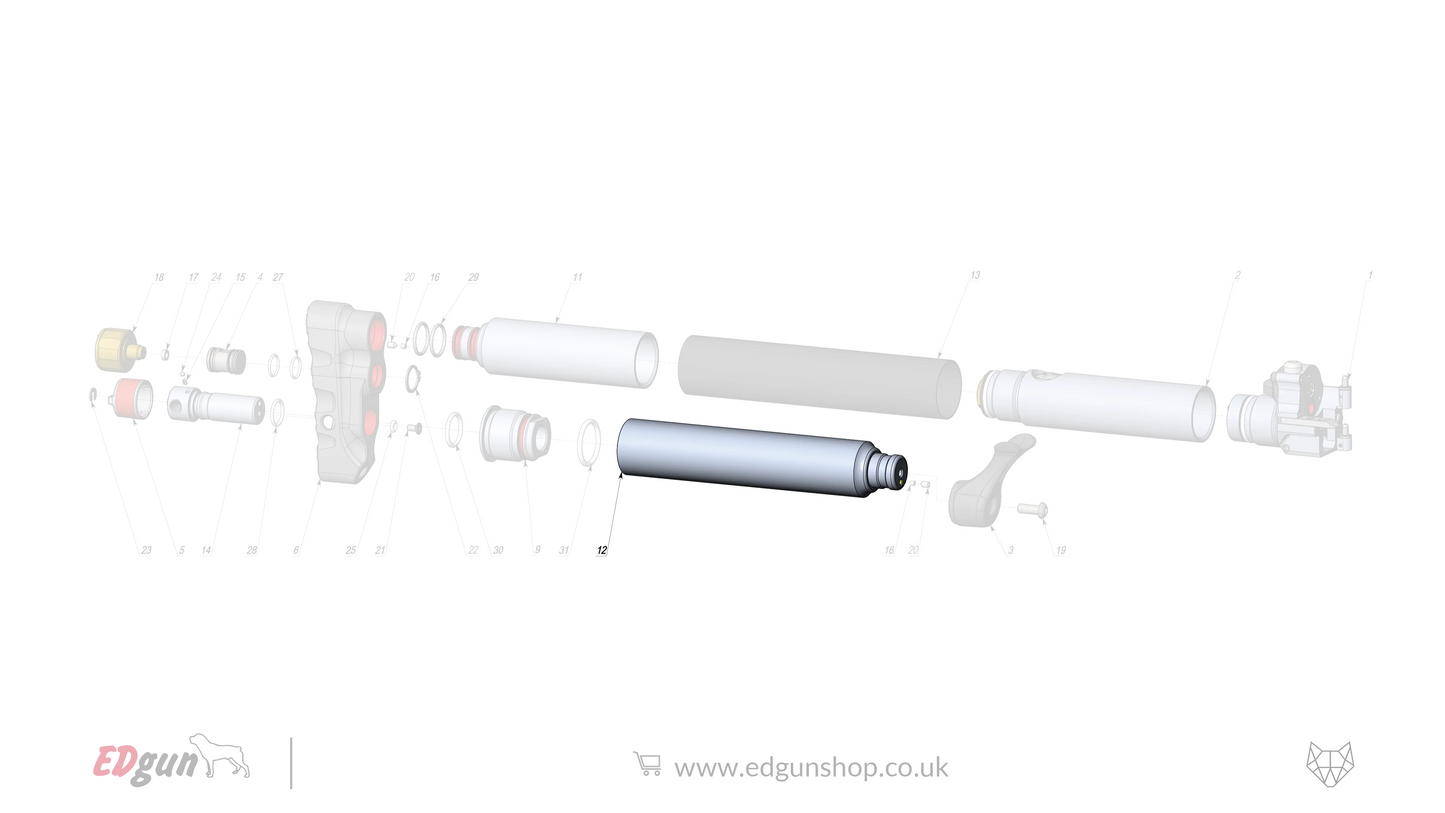

12- Reservoir - LSA242011-00 (x1) | 29- O-ring 70NBR 18х2 (x2) |

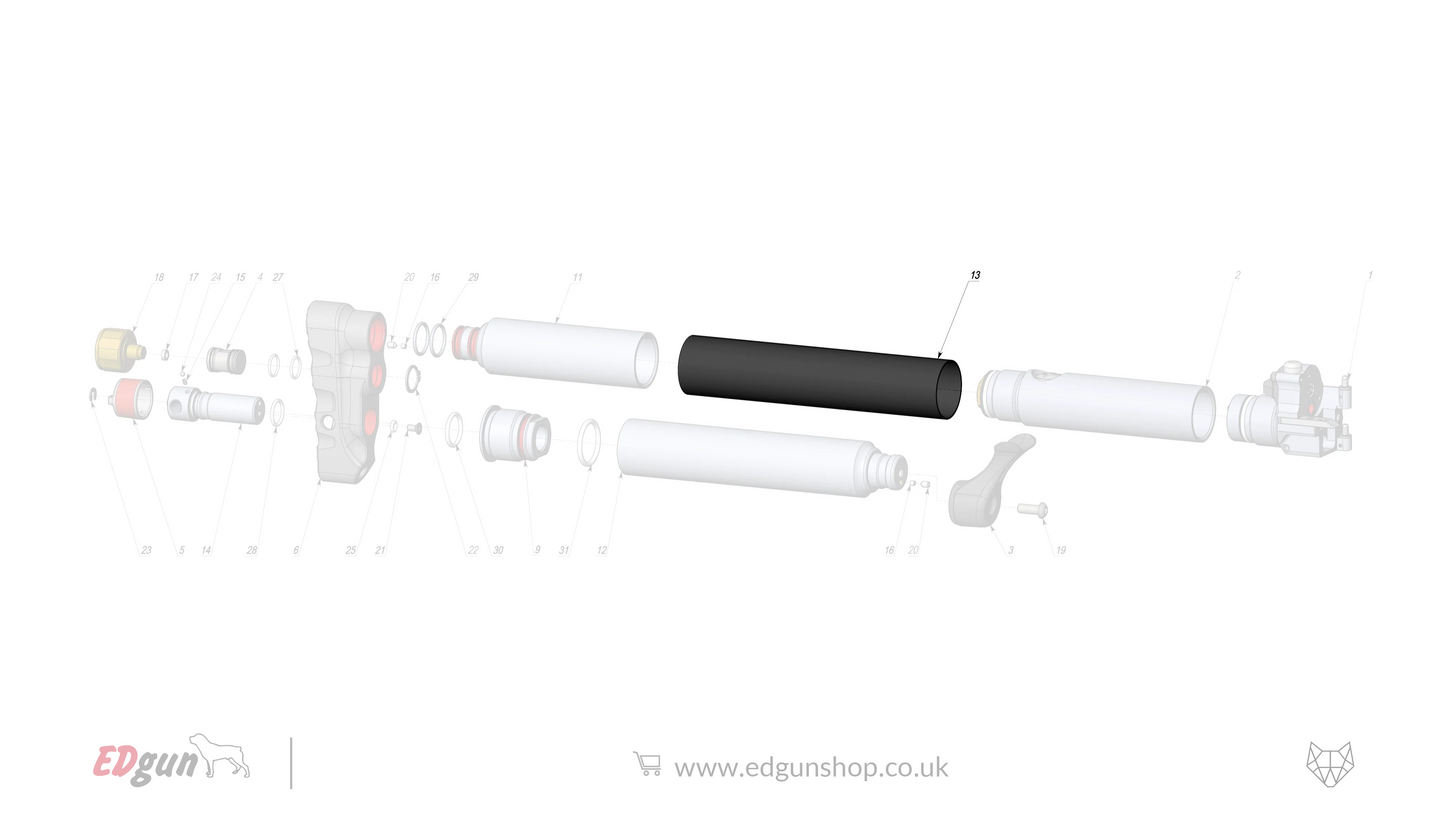

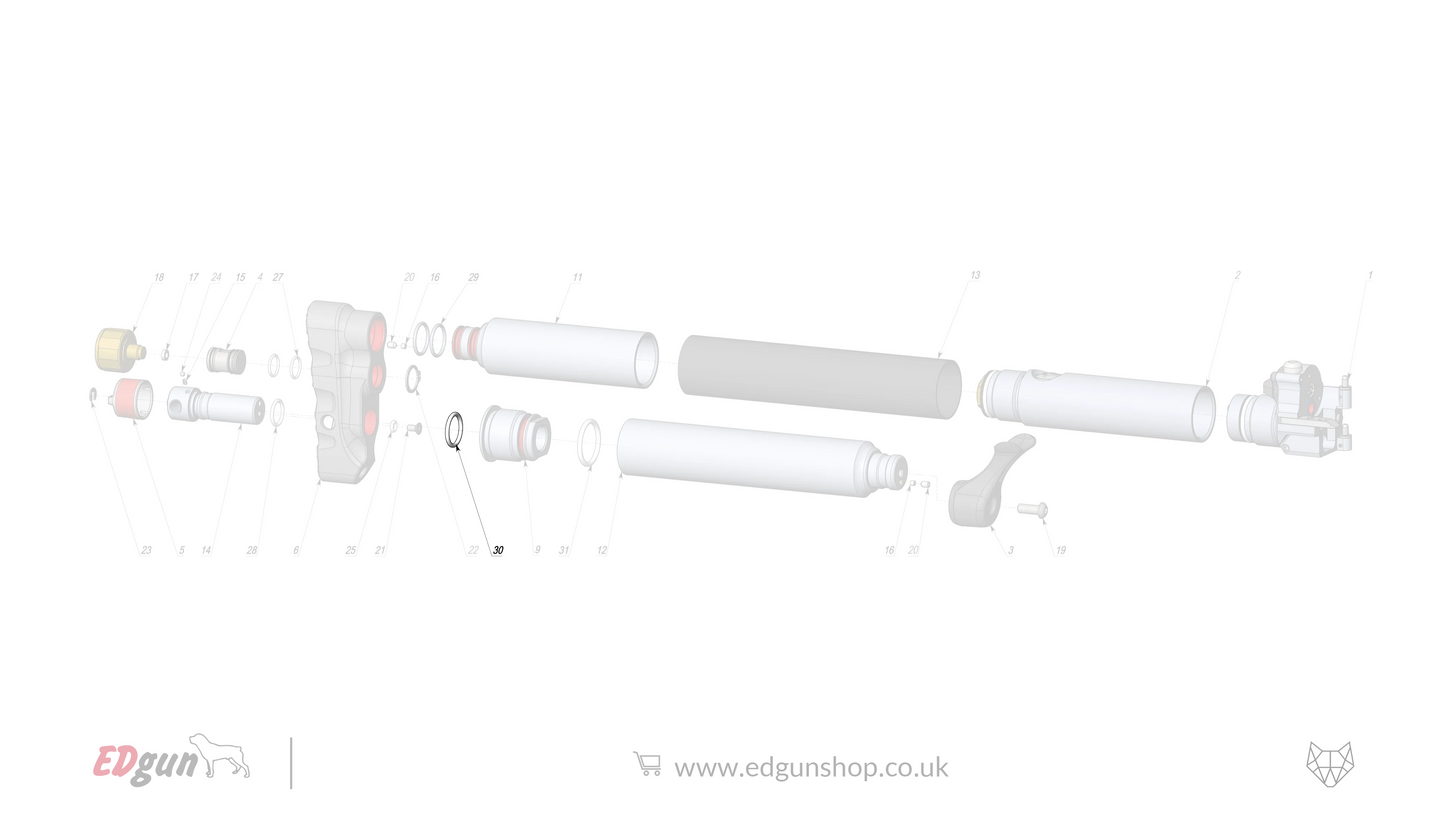

13- Neoprene Cover - LSA222016 (x1) | 30- O-ring 70NBR 18х2,5 (x1) |

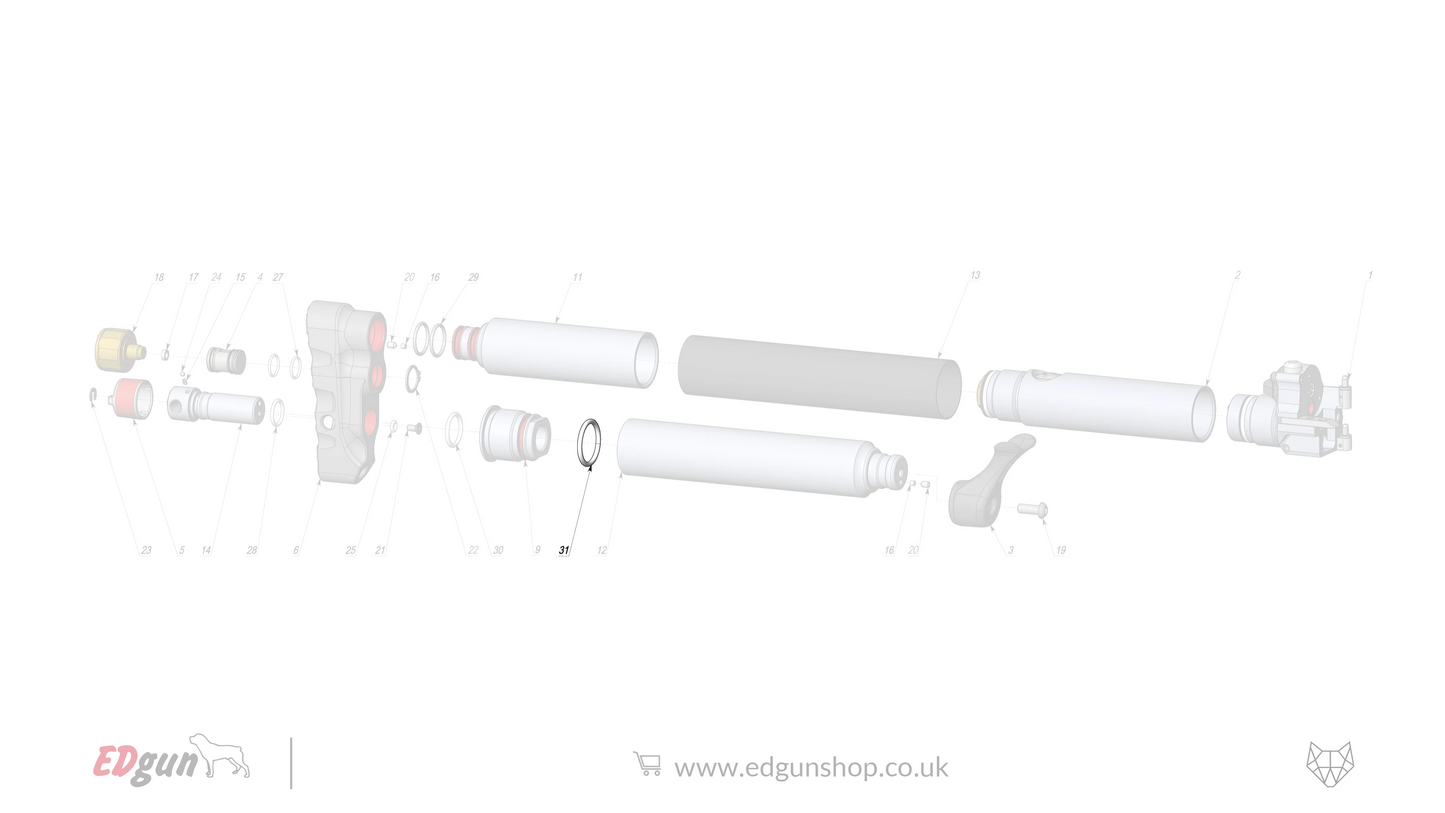

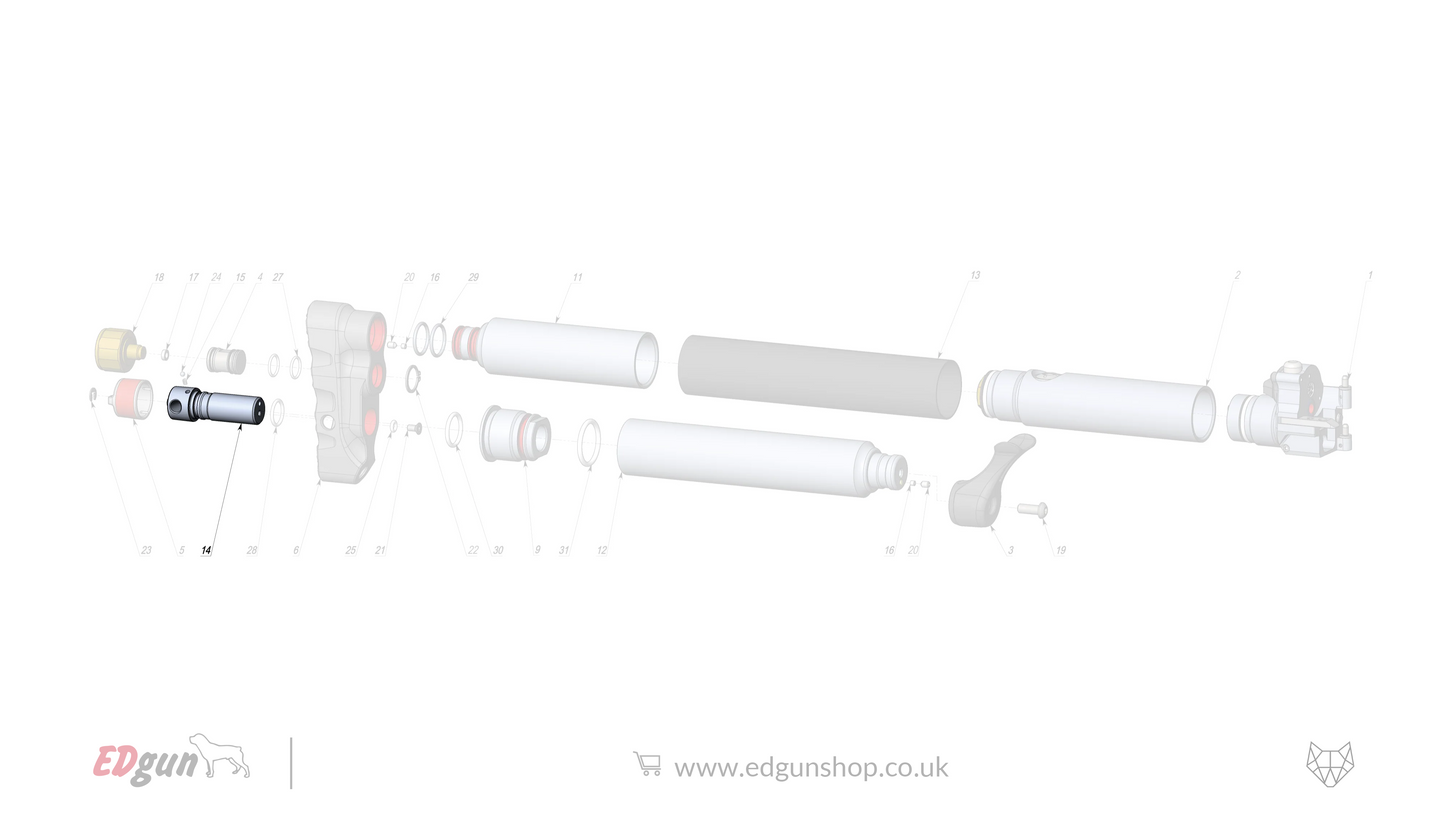

14- Fitting - LSA228004 (x1) | 31- O-ring 70NBR 25x3 (x1) |

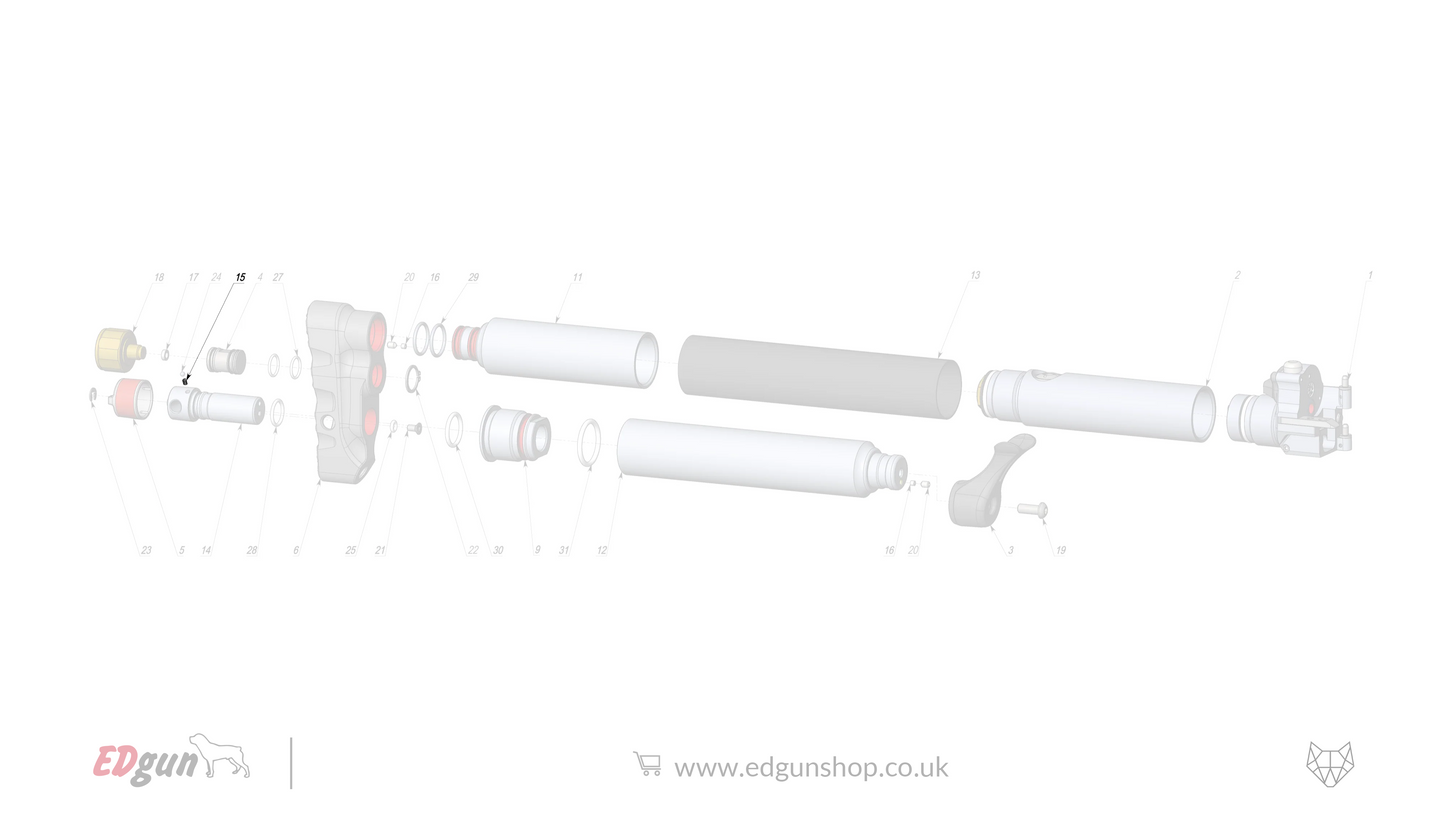

15- Spring 4,5х1,8х3х0,4 (x1) |
